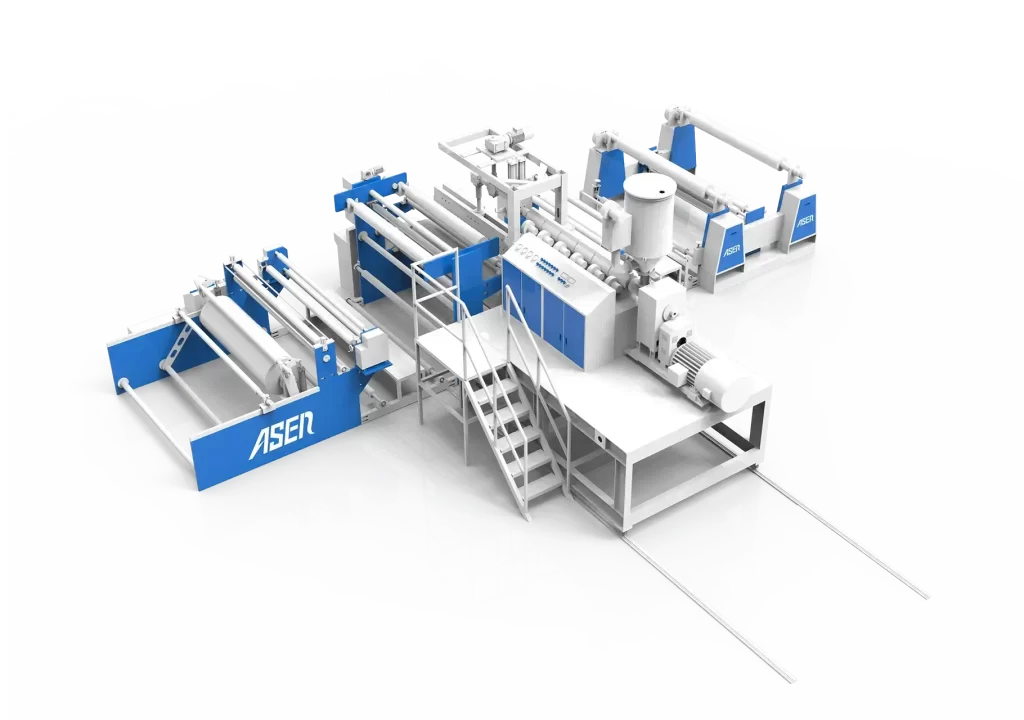

Nonwoven Fabric Extrusion Laminating Machine

Centralized control by PLC man-machine interface, integrated design of machine, electricity and gas.
• High-precision borderless imported original die head
• High-speed and high-efficiency mixing device According to the needs of customers, auxiliary devices can be selected such as automatic winding and unwinding, non-stop roll changing, fast screen changing, corona machine, etc.

Machines can be customized according to customer needs.

Mechanical Specifications	900	1100	1400	1700
Maximum Effective Width	800mm	1000mm	1300mm	1600mm
Extrusion Screw Diameter	Φ80mm	Φ90mm	Φ90mm	Φ100mm
Maximum Extrusion Volume	160kg/hr	180kg/hr	220kg/hr	240kg/hr
Total Power Of Extruder	30KW	30KW	45KW	45KW
Coating Film Top Speed	150-200m/min
Applicable Coating Resin	LDPE、PP、 EVA 、EAA
Applicable Substrate	BOPP, BOPET, BOPA, CPP, CPE, PAPER, AL, NONWOVEN FABRIC
Coating Thickness	0.12~0.6mm
Net Film Thickness Error	≦±5%
Main Unwinding Diameter	Φ800-1300mm (extra large roll diameter)
Auxiliary Unwinding Diameter	Φ500mm
Rewinding Diameter	Φ800-1500mm (extra large roll diameter)
